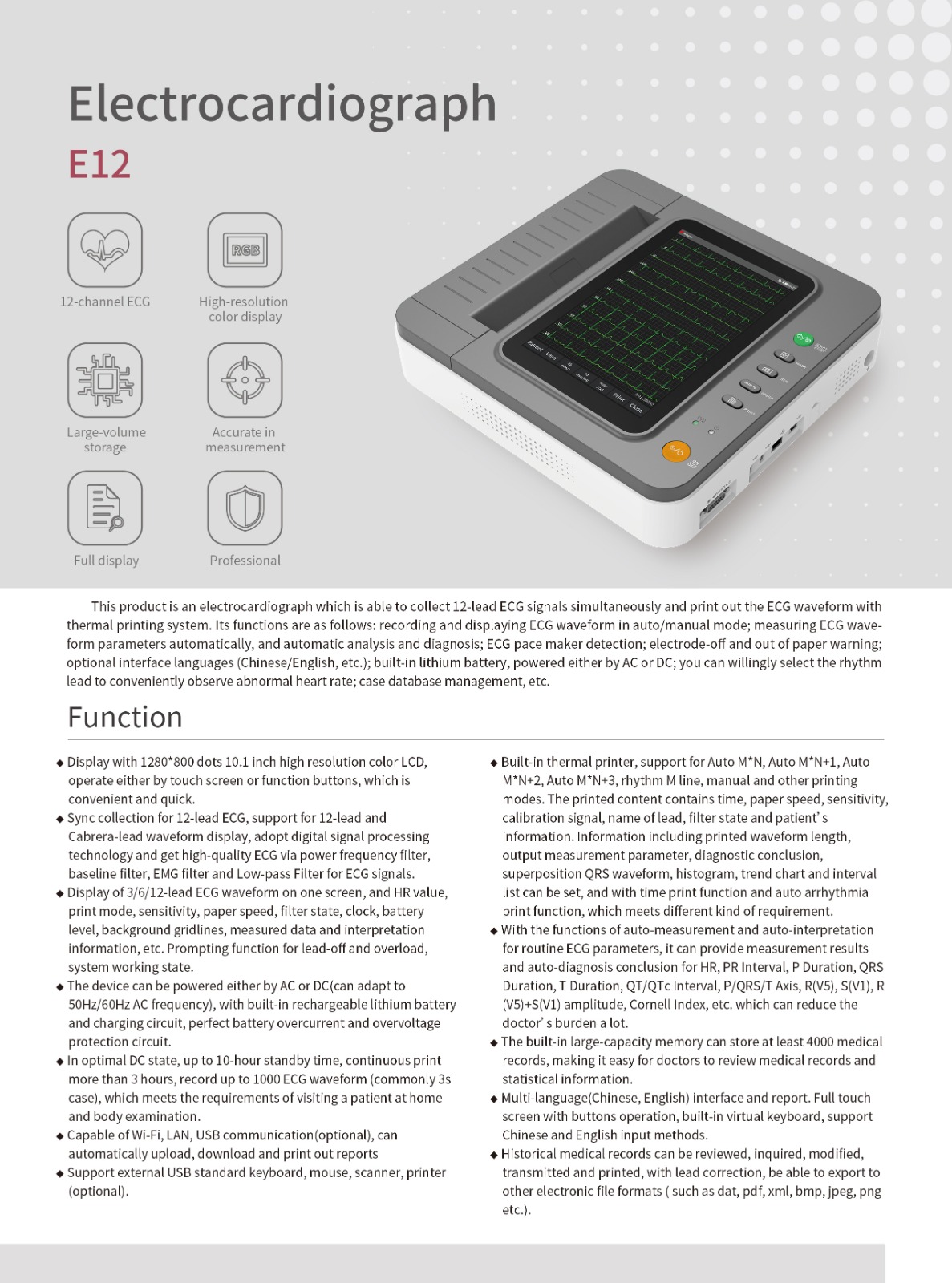

Contec E12 ECG

Description

Introduction:

The electrocardiograph (ECG) is a sophisticated medical device designed to collect 12-lead ECG signals simultaneously and produce ECG waveforms using a thermal printing system. Its key features include:

• Recording and Display: The ECG waveform can be recorded and displayed in both auto and manual modes.
• Automated Analysis: The device automatically measures, analyzes, and diagnoses ECG waveform parameters.
• Alerts: It prompts users for “Lead off” and “Lack of paper” conditions.
• Language Options: Users can choose between interface languages (e.g., Chinese or English).
• Power Options: The device operates on both built-in lithium batteries and AC/DC power sources.
• Flexible Rhythm Lead Selection: Users can freely select rhythm leads to observe abnormal heart rhythms.
• Case Database Management: The ECG system efficiently manages patient cases.

Key Functions:

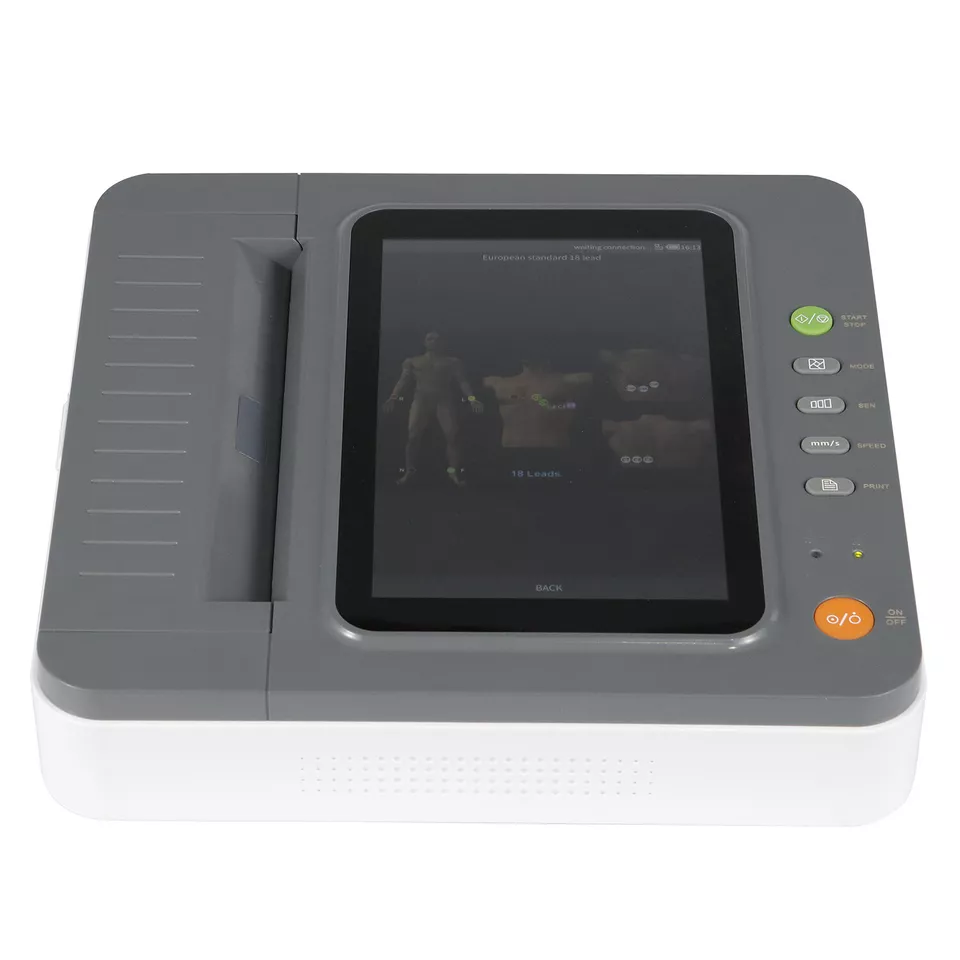

1. High-Resolution Display: The ECG features a 10.1-inch color LCD with 1280×800 dots. Users can operate it via touch screen or function buttons.
2. 12-Lead ECG Collection: The device synchronously collects 12-lead ECG data. It supports both 12-lead and Cabrera-lead waveform displays.
3. Comprehensive Display: On a single screen, users can view 3/6/12-lead ECG waveforms, heart rate (HR), print mode, sensitivity, paper speed, filter state, clock, battery level, background gridlines, and interpretation information. It also alerts for lead-off and system overload.
4. Power Options: The ECG can be powered by either AC or DC (compatible with 50/60Hz AC frequency). It includes a rechargeable lithium battery with overcurrent and overvoltage protection.
5. Long Standby Time: In optimal DC mode, the device offers up to 10 hours of standby time and can continuously print for over 3 hours. It can record up to 1000 ECG waveforms (typically 3 seconds per case).
6. Built-In Thermal Printer: The ECG supports various printing modes (Auto M*N, rhythm M line, manual, etc.). Printed content includes time, paper speed, sensitivity, lead names, filter state, and patient information.
7. Auto-Measurement and Interpretation: Routine ECG parameters (HR, PR Interval, QRS Duration, etc.) are automatically measured and interpreted, reducing the doctor’s workload.
8. Large-Capacity Memory: The built-in memory stores at least 4000 medical records, facilitating easy review and statistical analysis.
9. Historical Record Management: Historical medical records can be reviewed, modified, transmitted, and exported in various electronic formats (dat, pdf, xml, bmp, jpeg, png).
10. Multilingual Interface: The ECG supports both Chinese and English interfaces and reports. It features a full touch screen with virtual keyboard input.
11. USB Connectivity: Users can upload cases, download reports, and print via USB cable.
12. External Device Support: The ECG system accommodates external USB standard keyboards, mice, scanners, and printers.
